Electric hedgetrimmers

HC 605 E

• Power/Voltage/Frequency
  0.60 kW/230 V/50 Hz
• Blade length
  570 mm
• Weight
  3.6 kg
• Blade type
  double
• Maximum cutting thickness
  15 mm
• Blade pitch
  30 mm
• Sound pressure/power level
  78/95.4 dB(A)
• Lh/rh vibration level
  2.3/2.9 m/s²

Electric chainsaws

GS 200 E

• Power/Voltage/Frequency
  2.0 kW/230 V/50 Hz
• Bar length (nose)
  (sprocket), 41 cm, 16''
• Dry weight without bar and chain
  4.4 kg
• Chain (pitch x gauge)
  3/8''x.050''
• Oil Pump
  automatic, zero oil flow with engine stopped
• Oil/fuel tank capacity
  0.35 L
• Weight (commercial feature)
  Dry weight without bar and chain
• Sound pressure/power level
  84.3/106.5 dB(A)
• Lh/rh vibration level
  3.9/4.4 m/s²

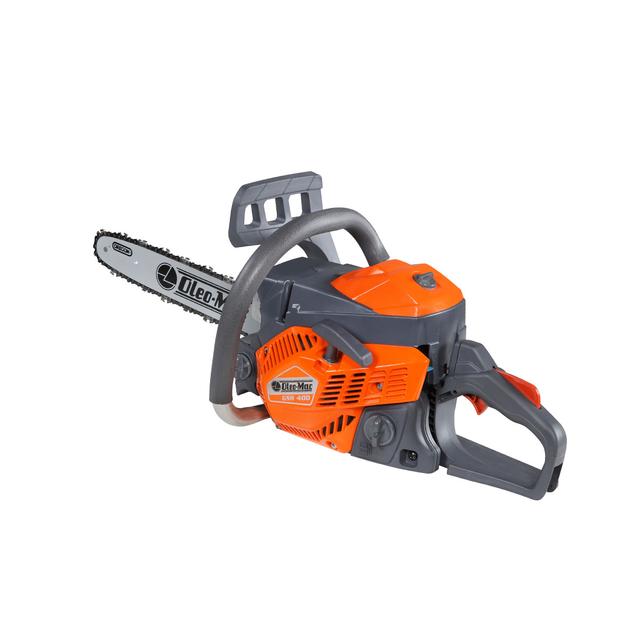

H series chainsaws

GSH400-16

• Power/Displacement
  2.3 HP - 1.7 kW/38.9 cm³
• Bar length (nose)
  35-41 cm, 14''-16''
• Dry weight without bar and chain
  4.5 kg
• Chain (pitch x gauge)
  Oregon 3/8" x .050"
• Oil Pump
  zero flow rate at idle speed, adjustable, aluminium, automatic
• Oil/fuel tank capacity
  0.22 L/0.32 L
• Weight (commercial feature)
  Dry weight without bar and chain
• Sound pressure/power level
  103.2/111.5 dB(A)
• Lh/rh vibration level
  6.9/7.1 m/s²

Multifunction brushcutters

Hedgetrimmer application

Electric hedgetrimmers

HC 750 E

• Power/Voltage/Frequency
  0.70 kW/230 V/50 Hz
• Blade length
  700 mm
• Weight
  4.3 kg
• Blade type
  double
• Maximum cutting thickness
  20 mm
• Blade pitch
  35 mm
• Sound pressure/power level
  86/94.9 dB(A)
• Lh/rh vibration level
  < 2.5 m/s²

Battery-powered hedgetrimmers

HCi 45 - KIT

• Blade type
  double
• Blade length
  450 mm
• Runtime up to
  5.0 Ah: 120' light use, 5.0 Ah: 90' intensive use, 2.0 Ah: 48' light use, 2.0 Ah: 36' intensive use
• Charging time with CRG
  220' (5.0 Ah), 88' (2.0 Ah)
• Charging time with FAST CRG
  90' (5.0 Ah), 40' (2.0 Ah)
• Weight without battery
  3.0 kg
• Compatible batteries
  Bi 5,0 OM, Bi 2,0 OM
• Motor type
  Brushed
• Blade pitch
  20 mm
• Weight (commercial feature)
  Weight without battery
• Sound pressure/power level
  81.4/90 dB(A)
• Lh/rh vibration level
  < 2.5 m/s²

H series chainsaws

GSH 510

• Power/Displacement
  3.0 HP - 2.2 kW/50.9 cm³
• Bar length (nose)
  (sprocket), 16"-18"-20", 41-46-51 cm
• Dry weight without bar and chain
  5.4 kg
• Chain (pitch x gauge)
  Oregon .325” x .050’’ (16’’-18’’), .325’’ x .058’’ (20’’)
• Oil Pump
  automatic, zero flow rate at idle speed, adjustable
• Oil/fuel tank capacity
  0.27 L/0.5 L
• Weight (commercial feature)
  Dry weight without bar and chain
• Sound pressure/power level
  110/113 dB(A)
• Lh/rh vibration level
  5.2/4.8 m/s²

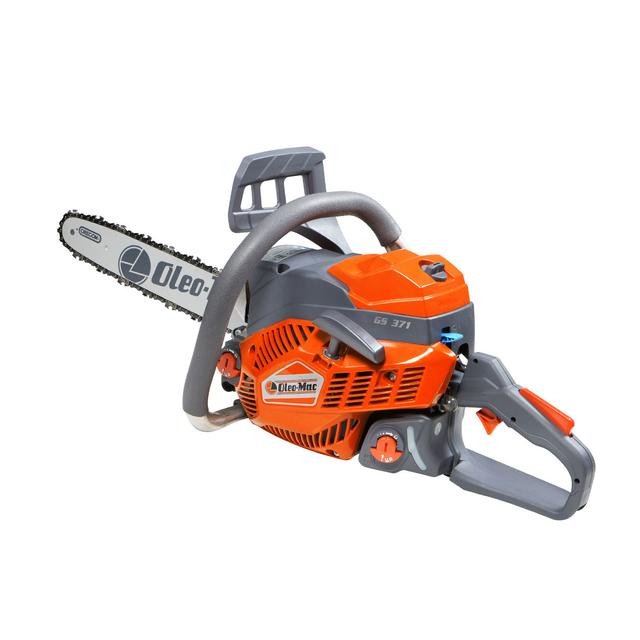

Compact chainsaws

GS 371

• Power/Displacement
  2.4 HP - 1.8 kW/35.2 cm³
• Bar length (nose)
  35-41 cm, 14''-16'', (sprocket)
• Dry weight without bar and chain
  4.7 kg
• Chain (pitch x gauge)
  3/8''x.050'' Special
• Oil Pump
  automatic, zero flow rate at idle speed
• Oil/fuel tank capacity
  0.22 L/0.32 L
• Weight (commercial feature)
  Dry weight without bar and chain
• Sound pressure/power level
  100.4/110.9 dB(A)
• Lh/rh vibration level
  5.2/6.5 m/s²

H series chainsaws

GSH 560

• Power/Displacement
  3.5 HP - 2.6 kW/54.5 cm³
• Bar length (nose)
  16"-18"-20", 41-46-51 cm
• Dry weight without bar and chain
  5.5 kg
• Chain (pitch x gauge)
  Oregon .325” - 3/8”
• Oil Pump
  automatic, zero flow rate at idle speed, adjustable
• Oil/fuel tank capacity
  0.27 L/0.5 L
• Weight (commercial feature)
  Dry weight without bar and chain
• Sound pressure/power level
  113/116 dB(A)
• Lh/rh vibration level
  7.2/7.0 m/s²

Multifunction brushcutters

Pruner application

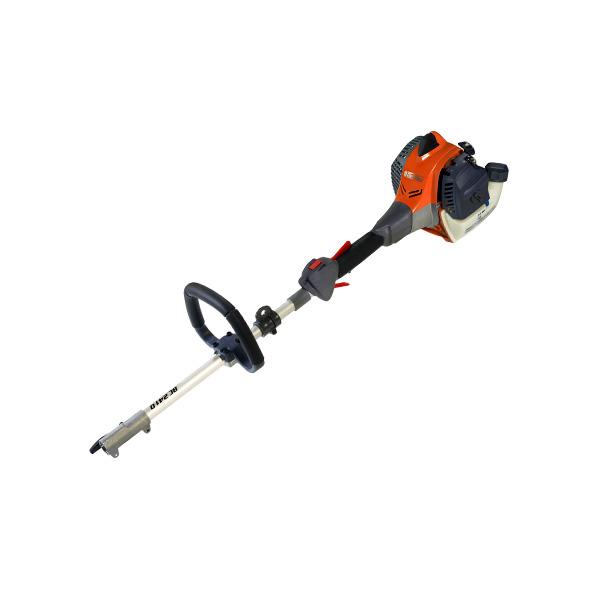

Multifunction brushcutters

BC 241 D - Engine unit

• Power/Displacement
  1.2 HP - 0.9 kW/21.7 cm³
• Weight of engine unit
  4.2 kg
• Grip
  single
• Tube diameter
  24 mm (26 mm application side)
• Fuel tank capacity
  0.40 L
• Weight (commercial feature)
  Weight of engine unit

Multifunction brushcutters

BC 300 D - Engine unit

• Power/Displacement
  1.5 HP - 1.1 kW/30 cm³
• Weight of engine unit
  4.8 kg
• Grip
  single
• Tube diameter
  26 mm
• Fuel tank capacity
  0.58 L
• Weight (commercial feature)
  Weight of engine unit

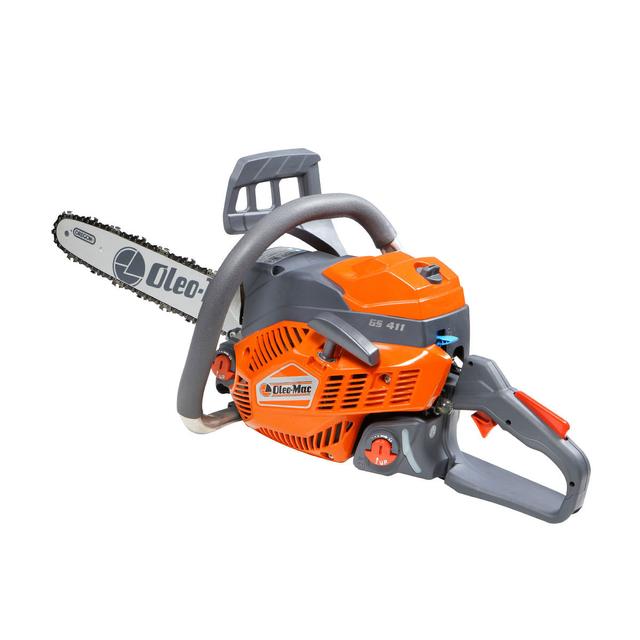

Compact chainsaws

GS 411

• Power/Displacement
  2.6 HP - 1.9 kW/39.0 cm³
• Bar length (nose)
  (sprocket), 41 cm, 16''
• Dry weight without bar and chain
  4.7 kg
• Chain (pitch x gauge)
  3/8''x.050'' Special, .325''x.050'' Microlite
• Oil Pump
  automatic, zero flow rate at idle speed, adjustable
• Oil/fuel tank capacity
  0.22 L/0.32 L
• Weight (commercial feature)
  Dry weight without bar and chain
• Sound pressure/power level
  100.2/111.2 dB(A)
• Lh/rh vibration level
  5.1/5.9 m/s² (3/8"), 4.6/5.2 m/s² (.325")

Professional hedgetrimmers

HC 246 P

• Power/Displacement
  1.0 HP - 0.75 kW/21.7 cm³
• Blade length
  600 mm
• Weight
  5.2 kg
• Blade type
  double
• Blade pitch
  35 mm
• Sound pressure/power level
  98.8/108 dB(A)
• Lh/rh vibration level
  3.8/4.5 m/s²

Medium power chainsaws

GS 451

• Power/Displacement
  2.9 HP - 2.1 kW/42.9 cm³
• Bar length (nose)
  41-46 cm, 16''-18'', (sprocket - microlite)
• Dry weight without bar and chain
  4.8 kg
• Chain (pitch x gauge)
  .325''x.050''
• Oil Pump
  automatic, zero flow rate at idle speed, adjustable
• Oil/fuel tank capacity
  0.22 L/0.32 L
• Weight (commercial feature)
  Dry weight without bar and chain
• Sound pressure/power level
  103/114 dB(A)
• Lh/rh vibration level
  4.3/4.8 m/s²

Professional hedgetrimmers

HCS 247 P

• Power/Displacement
  1.0 HP - 0.75 kW/21.7 cm³
• Blade length
  750 mm
• Weight
  5.2 kg
• Blade type
  single
• Blade pitch
  35 mm
• Sound pressure/power level
  98.8/108 dB(A)
• Lh/rh vibration level
  6.6/8.6 m/s²

Professional hedgetrimmers

HC 247 P

• Power/Displacement
  1.0 HP - 0.75 kW/21.7 cm³
• Blade length
  750 mm
• Weight
  5.4 kg
• Blade type
  double
• Blade pitch
  35 mm
• Sound pressure/power level
  98.8/108 dB(A)
• Lh/rh vibration level
  3.8/4.5 m/s²

Pruning chainsaws

GST 250

• Power/Displacement
  1.3 HP - 1.0 kW/25.4 cm³
• Bar length (nose)
  25 cm, 10'', (sprocket/carving)
• Dry weight without bar and chain
  2.7 kg
• Chain (pitch x gauge)
  1/4''x.050'' (sprocket), 1/4''x.050'' (carving), 1/4" x .043" (sprocket)
• Oil Pump
  zero flow rate at idle speed, aluminium, automatic
• Oil/fuel tank capacity
  0.19 L/0.22 L
• Weight (commercial feature)
  Dry weight without bar and chain
• Sound pressure/power level
  97.7/107.9 dB(A)
• Lh/rh vibration level
  4.3/5.2 m/s²

Shaft hedgetrimmers

BC 241 H

• Power/Displacement
  1.2 HP - 0.9 kW/21.7 cm³
• Blade length
  500 mm
• Weight
  6.8 kg
• Blade type
  double blade, rotable through 12 positions from 0° to 180°
• Blade pitch
  35 mm
• Overall length of machine
  1.80 m
• Sound pressure/power level
  93.4/104.7 dB(A)
• Lh/rh vibration level
  8.0/6.5 m/s²

Pruning chainsaws

GST 360

• Power/Displacement
  2.0 HP - 1.5 kW/35.1 cm³
• Bar length (nose)
  (sprocket), 30-35 cm, 12''-14''
• Dry weight without bar and chain
  3.8 kg
• Chain (pitch x gauge)
  3/8" x .050" (sprocket)
• Oil Pump
  zero flow rate at idle speed, aluminium, adjustable
• Oil/fuel tank capacity
  0.23 L/0.28 L
• Weight (commercial feature)
  Dry weight without bar and chain
• Sound pressure/power level
  103/115 dB(A)
• Lh/rh vibration level
  4.9/5.2 m/s²

Shaft hedgetrimmers

BC 241 HL

• Power/Displacement
  1.2 HP - 0.9 kW/21.7 cm³
• Blade length
  500 mm
• Weight
  7.1 kg
• Blade type
  double blade, rotable through 12 positions from 0° to 180°
• Blade pitch
  35 mm
• Overall length of machine
  2.40 m
• Sound pressure/power level
  93.4/104.7 dB(A)
• Lh/rh vibration level
  8.0/6.5 m/s²

Professional chainsaws

GS 651

• Power/Displacement
  4.7 HP - 3.5 kW/63.4 cm³
• Bar length (nose)
  (replaceable sprocket), 46-51 cm, 18''-20''
• Dry weight without bar and chain
  6.5 kg
• Chain (pitch x gauge)
  3/8''x.058''
• Oil Pump
  automatic, zero flow rate at idle speed, adjustable
• Oil/fuel tank capacity
  0.45 L/0.80 L
• Weight (commercial feature)
  Dry weight without bar and chain
• Sound pressure/power level
  103.3/112 dB(A)
• Lh/rh vibration level
  5.3/5.3 m/s²

Telescopic pruners

PPX 271

• Power/Displacement
  1.3 HP - 1.0 kW/27 cm³
• Bar length (nose)
  25 cm, 10'', (microlite sprocket)
• Dry weight without bar and chain
  7.9 kg
• Chain (pitch x gauge)
  3/8''x.043''
• Adjustement of pruning head
  from 0° to 90° (5 positions)
• Overall length of machine
  2.60/3.80 m
• Weight (commercial feature)
  Dry weight without bar and chain
• Sound pressure/power level
  97/107.5 dB(A)
• Lh/rh vibration level
  4.2/5.9 m/s²
